Leírás

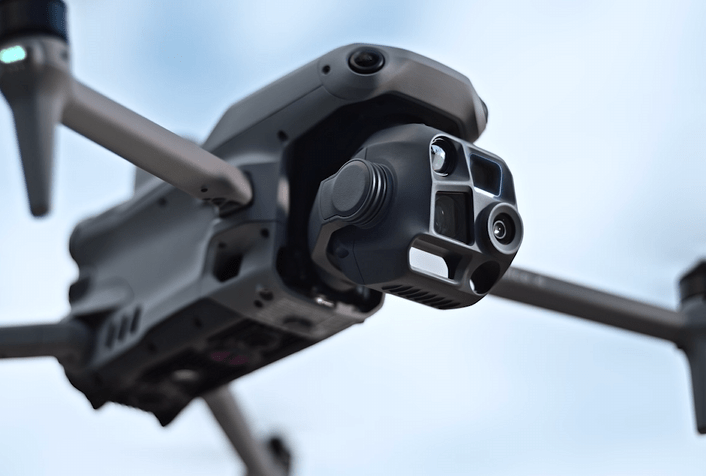

DJI Matrice 4 Thermal
Közepes méretű, hőkamerával, zoomos kamerával is felszerelt drón.
Lézeres távolság és pozíció határozás, NIR vető, AR és AI képességek
Created for: Public Safety / Industrial Inspections
Type: Foldable Quadcopter
Camera / Compatible gimbals / Payloads:
Wide-Angle Camera1/1.3 CMOS, 48 MP Effective Pixelsf/1.7, Format Equivalent: 24 mm
3x Medium Tele Camera1/1.3 CMOS, 48 MP Effective Pixels f/2.8, Format Equivalent: 70 mm
7x Tele Camera 1/1.5 CMOS, 48 MP Effective Pixelsf/2.8, Format Equivalent: 168 mmVS M3T, pixels quantity increase by 4 times, zoom capability increase by 2 times
Thermal Camera 640 × 512, f/1.0, 53 mm equivalent focal lengthUHR Infrared Image, image resolutions up to 1280 × 1024
Dimensions (unfolded): Unfolded (without propellers): 307.0×387.5×149.5 mm (L×W×H)
Dimensions (folded): Folded (without propellers): 260.6×113.7×138.4 mm (L×W×H)
Weight (incl. batteries and propellers): 1219 g (standard propellers)1229 g (low-noise propellers)
Batteries: One M4T Battery
Battery capacity / Battery weight: 200 cycles
Battery charging time: 0%-100% ~78 min
Max. take-off weight: 1420 g (standard propellers)1430 g (low-noise propellers)
Max. payload: 201g
Navigation : GPS, Galileo, BeiDou, GLONASS
Flight control: Custom built-in
Apps: DJI Pilot 2 (Andriod)DJI FlightHub 2
Max. flight time (up to): 49 mins (built-in RTK module)
Max. speed (up to): 21 m/s (N Mode)21 m/s flying forward, 18 m/s flying backward, 19 m/s flying sideways (S Mode)
Max. ascent – descent speed (up to): 10 m/s (N Mode)10 m/s (S Mode)
Max. wind resistance (up to): 12 m/s
Remote controller: DJI RC Plus 2 Enterprise
Video transmission: DJI O4 Enterprise
Multi user/aircraft capability: Single Controller Only
Operating frequency: 2.400-2.4835 GHz5.725-5.850 GHz5.150-5.250 GHz* Operating frequency allowed varies among countries and regions. Please refer to local laws and regulations for more information.
Max. distance: 25 km (FCC); 12 km (CE/SRRC/MIC)
Max. Takeoff altitude (sea level): 6000 m (without payload)
Operating temperature: -10℃ to 40℃ (14°F to 104°F)
Propeller model: Standard or Low Noise
Obstacle Sensing Range: Omnidirectional binocular vision system, supplemented with a 3D infrared sensor at the bottom of the aircraft.
